RF17DRE71M4詳細信息
RF17DRE71M4
訂購熱線：13360667204
關鍵詞：1.5千瓦立式電機減速機一體機_RF17DRE71M4_RF17DM71M4
RF17DRE71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF17DRE71M4 | 38.61 | 0.37KW | 36.0rpm | 99N.m | 14.5kg | 770N | 0.85 |
| RF17DRE71M4 | 36.20 | 0.37KW | 38.0rpm | 93N.m | 14.5kg | 1260N | 0.90 |
| RF17DRE71M4 | 31.94 | 0.37KW | 43.0rpm | 82N.m | 14.5kg | 1910N | 1.05 |
| RF17DRE71M4 | 28.32 | 0.37KW | 49.0rpm | 72N.m | 14.5kg | 1880N | 1.15 |
| RF17DRE71M4 | 24.07 | 0.37KW | 57.0rpm | 62N.m | 14.5kg | 1830N | 1.40 |
| RF17DRE71M4 | 25.23 | 0.37KW | 55.0rpm | 65N.m | 14.5kg | 1840N | 1.30 |
| RF17DRE71M4 | 23.15 | 0.37KW | 60.0rpm | 59N.m | 14.5kg | 1820N | 1.45 |
| RF17DRE71M4 | 19.71 | 0.37KW | 70.0rpm | 50N.m | 14.5kg | 1760N | 1.70 |
| RF17DRE71M4 | 16.99 | 0.37KW | 81.0rpm | 44N.m | 14.5kg | 1710N | 1.95 |
| RF17DRE71M4 | 15.84 | 0.37KW | 87.0rpm | 40N.m | 14.5kg | 1680N | 2.10 |
| RF17DRE71M4 | 13.84 | 0.37KW | 100rpm | 35N.m | 14.5kg | 1630N | 2.40 |
| RF17DRE71M4 | 12.98 | 0.37KW | 106rpm | 33N.m | 14.5kg | 1610N | 2.60 |
| RF17DRE71M4 | 11.45 | 0.37KW | 121rpm | 29N.m | 14.5kg | 1560N | 2.80 |
| RF17DRE71M4 | 10.15 | 0.37KW | 136rpm | 26N.m | 14.5kg | 1520N | 3.00 |
| RF17DRE71M4 | 8.63 | 0.37KW | 160rpm | 22N.m | 14.5kg | 1460N | 3.30 |
| RF17DRE71M4 | 7.55 | 0.37KW | 183rpm | 19N.m | 14.5kg | 1370N | 2.90 |
| RF17DRE71M4 | 7.04 | 0.37KW | 196rpm | 18N.m | 14.5kg | 1350N | 3.10 |
| RF17DRE71M4 | 6.15 | 0.37KW | 224rpm | 16N.m | 14.5kg | 1300N | 3.40 |
| RF17DRE71M4 | 5.76 | 0.37KW | 239rpm | 15N.m | 14.5kg | 1280N | 3.60 |
| RF17DRE71M4 | 5.09 | 0.37KW | 271rpm | 13N.m | 14.5kg | 1240N | 3.90 |
| RF17DRE71M4 | 4.51 | 0.37KW | 306rpm | 12N.m | 14.5kg | 1200N | 4.20 |
| RF17DRE71M4 | 3.83 | 0.37KW | 360rpm | 9.8N.m | 14.5kg | 1140N | 4.60 |
RF17DM71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF17DM71M4 | 38.61 | 0.37KW | 36.0rpm | 99N.m | 14.5kg | 770N | 0.85 |
| RF17DM71M4 | 36.20 | 0.37KW | 38.0rpm | 93N.m | 14.5kg | 1260N | 0.90 |
| RF17DM71M4 | 31.94 | 0.37KW | 43.0rpm | 82N.m | 14.5kg | 1910N | 1.05 |
| RF17DM71M4 | 28.32 | 0.37KW | 49.0rpm | 72N.m | 14.5kg | 1880N | 1.15 |
| RF17DM71M4 | 24.07 | 0.37KW | 57.0rpm | 62N.m | 14.5kg | 1830N | 1.40 |
| RF17DM71M4 | 25.23 | 0.37KW | 55.0rpm | 65N.m | 14.5kg | 1840N | 1.30 |
| RF17DM71M4 | 23.15 | 0.37KW | 60.0rpm | 59N.m | 14.5kg | 1820N | 1.45 |
| RF17DM71M4 | 19.71 | 0.37KW | 70.0rpm | 50N.m | 14.5kg | 1760N | 1.70 |
| RF17DM71M4 | 16.99 | 0.37KW | 81.0rpm | 44N.m | 14.5kg | 1710N | 1.95 |
| RF17DM71M4 | 15.84 | 0.37KW | 87.0rpm | 40N.m | 14.5kg | 1680N | 2.10 |
| RF17DM71M4 | 13.84 | 0.37KW | 100rpm | 35N.m | 14.5kg | 1630N | 2.40 |
| RF17DM71M4 | 12.98 | 0.37KW | 106rpm | 33N.m | 14.5kg | 1610N | 2.60 |
| RF17DM71M4 | 11.45 | 0.37KW | 121rpm | 29N.m | 14.5kg | 1560N | 2.80 |
| RF17DM71M4 | 10.15 | 0.37KW | 136rpm | 26N.m | 14.5kg | 1520N | 3.00 |
| RF17DM71M4 | 8.63 | 0.37KW | 160rpm | 22N.m | 14.5kg | 1460N | 3.30 |
| RF17DM71M4 | 7.55 | 0.37KW | 183rpm | 19N.m | 14.5kg | 1370N | 2.90 |
| RF17DM71M4 | 7.04 | 0.37KW | 196rpm | 18N.m | 14.5kg | 1350N | 3.10 |
| RF17DM71M4 | 6.15 | 0.37KW | 224rpm | 16N.m | 14.5kg | 1300N | 3.40 |
| RF17DM71M4 | 5.76 | 0.37KW | 239rpm | 15N.m | 14.5kg | 1280N | 3.60 |
| RF17DM71M4 | 5.09 | 0.37KW | 271rpm | 13N.m | 14.5kg | 1240N | 3.90 |
| RF17DM71M4 | 4.51 | 0.37KW | 306rpm | 12N.m | 14.5kg | 1200N | 4.20 |
| RF17DM71M4 | 3.83 | 0.37KW | 360rpm | 9.8N.m | 14.5kg | 1140N | 4.60 |
RF17DRE71M4齒輪減速機馬達類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

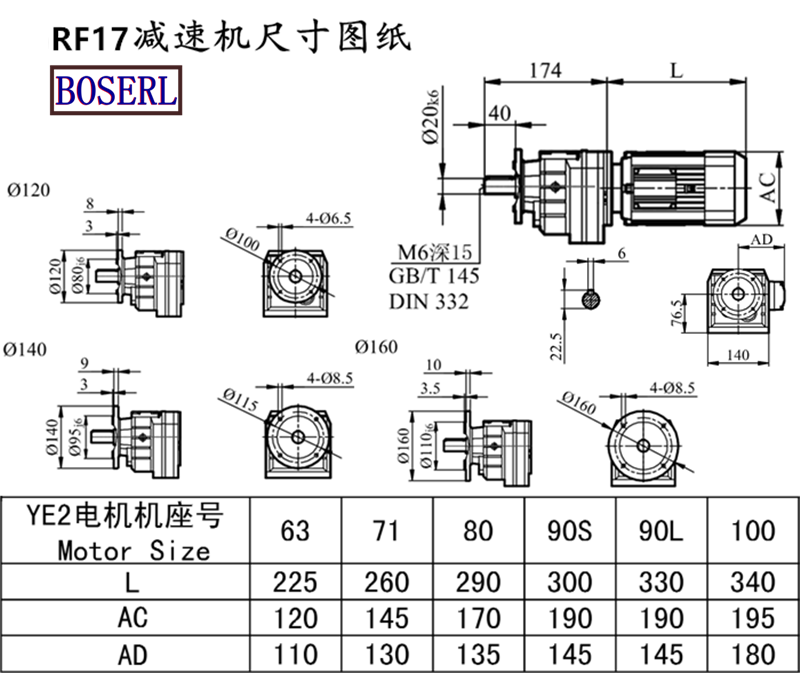

RF17DRE71M4齒輪減速機馬達安裝尺寸圖紙
RF17DRE71M4齒輪減速機馬達生產工廠展示：看廠請提前三天預約
立式減速機應用案例展示：
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 1.5千瓦立式電機減速機一體機 RF17DRE71M4 RF17DM71M4
