FF37DRS71S4詳細信息
FF37DRS71S4
關鍵詞：一分鐘105轉減速機電機_FF37DRS71S4_FF37DR71S4
FF37DRS71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF37DRS71S4 | 128.51 | 0.25KW | 10.0rpm | 235N.m | 23Kg | 3690N | 0.85 |
| FF37DRS71S4 | 117.88 | 0.25KW | 11.0rpm | 215N.m | 23Kg | 4040N | 0.90 |
| FF37DRS71S4 | 100.36 | 0.25KW | 13.0rpm | 184N.m | 23Kg | 4500N | 1.10 |
| FF37DRS71S4 | 86.53 | 0.25KW | 15.0rpm | 159N.m | 23Kg | 4790N | 1.25 |
| FF37DRS71S4 | 80.65 | 0.25KW | 16.0rpm | 148N.m | 23Kg | 4900N | 1.35 |
| FF37DRS71S4 | 70.50 | 0.25KW | 18.0rpm | 130N.m | 23Kg | 5060N | 1.55 |
| FF37DRS71S4 | 66.09 | 0.25KW | 20.0rpm | 121N.m | 23Kg | 5120N | 1.65 |
| FF37DRS71S4 | 58.32 | 0.25KW | 22.0rpm | 107N.m | 23Kg | 5210N | 1.85 |
| FF37DRS71S4 | 54.54 | 0.25KW | 24.0rpm | 100N.m | 23Kg | 5260N | 2.00 |
| FF37DRS71S4 | 51.70 | 0.25KW | 25.0rpm | 95N.m | 23Kg | 5280N | 2.10 |
| FF37DRS71S4 | 47.02 | 0.25KW | 28.0rpm | 86N.m | 23Kg | 5330N | 2.30 |
| FF37DRS71S4 | 43.83 | 0.25KW | 30.0rpm | 80N.m | 23Kg | 5360N | 2.50 |
| FF37DRS71S4 | 38.31 | 0.25KW | 34.0rpm | 70N.m | 23Kg | 5400N | 2.80 |
| FF37DRS71S4 | 35.91 | 0.25KW | 36.0rpm | 66N.m | 23Kg | 5420N | 3.00 |
| FF37DRS71S4 | 31.69 | 0.25KW | 41.0rpm | 58N.m | 23Kg | 5440N | 3.40 |
FF37DR71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF37DR71S4 | 128.51 | 0.25KW | 10.0rpm | 235N.m | 23Kg | 3690N | 0.85 |
| FF37DR71S4 | 117.88 | 0.25KW | 11.0rpm | 215N.m | 23Kg | 4040N | 0.90 |
| FF37DR71S4 | 100.36 | 0.25KW | 13.0rpm | 184N.m | 23Kg | 4500N | 1.10 |
| FF37DR71S4 | 86.53 | 0.25KW | 15.0rpm | 159N.m | 23Kg | 4790N | 1.25 |
| FF37DR71S4 | 80.65 | 0.25KW | 16.0rpm | 148N.m | 23Kg | 4900N | 1.35 |
| FF37DR71S4 | 70.50 | 0.25KW | 18.0rpm | 130N.m | 23Kg | 5060N | 1.55 |
| FF37DR71S4 | 66.09 | 0.25KW | 20.0rpm | 121N.m | 23Kg | 5120N | 1.65 |
| FF37DR71S4 | 58.32 | 0.25KW | 22.0rpm | 107N.m | 23Kg | 5210N | 1.85 |
| FF37DR71S4 | 54.54 | 0.25KW | 24.0rpm | 100N.m | 23Kg | 5260N | 2.00 |
| FF37DR71S4 | 51.70 | 0.25KW | 25.0rpm | 95N.m | 23Kg | 5280N | 2.10 |
| FF37DR71S4 | 47.02 | 0.25KW | 28.0rpm | 86N.m | 23Kg | 5330N | 2.30 |
| FF37DR71S4 | 43.83 | 0.25KW | 30.0rpm | 80N.m | 23Kg | 5360N | 2.50 |
| FF37DR71S4 | 38.31 | 0.25KW | 34.0rpm | 70N.m | 23Kg | 5400N | 2.80 |
| FF37DR71S4 | 35.91 | 0.25KW | 36.0rpm | 66N.m | 23Kg | 5420N | 3.00 |
| FF37DR71S4 | 31.69 | 0.25KW | 41.0rpm | 58N.m | 23Kg | 5440N | 3.40 |

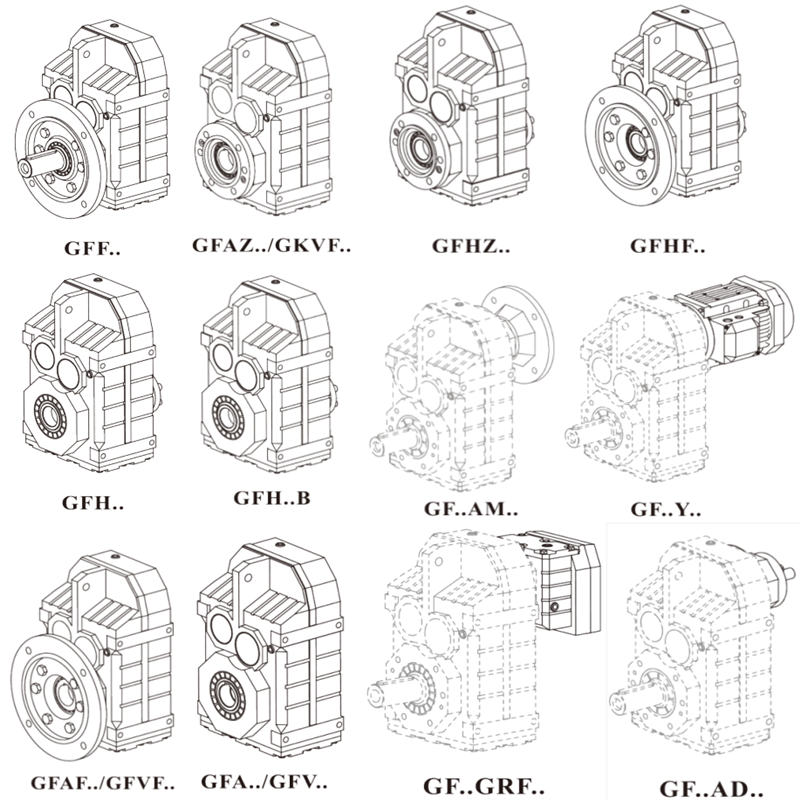

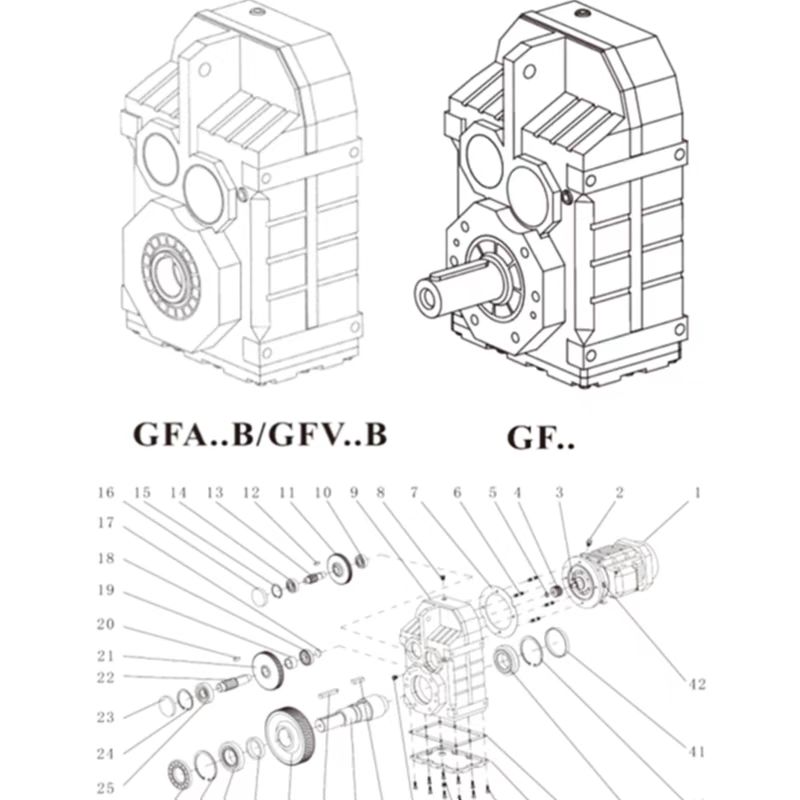

FF37DRS71S4齒輪減速機馬達類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

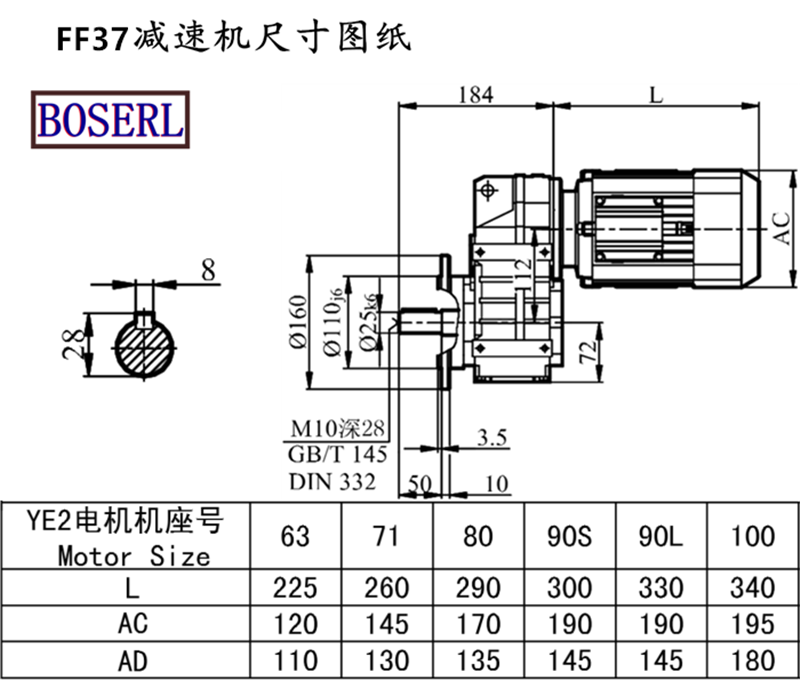

FF37DRS71S4齒輪減速機馬達安裝尺寸圖紙
FF37DRS71S4齒輪減速機馬達生產廠家，看廠請?zhí)崆叭祛A約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
